Best P10 LED panel/module Manufacturer in China

The P10 LED panel, also known as p10 led module, is just a different name for the same product. It means that the distance between two adjacent pixels is 10mm. It is an economical outdoor large screen suitable for long-distance viewing.

SZLEDWORLD is the best professional P10 LED module wholesale manufacturer, since 2009, we provide ODM/OEM for customers, and adopt advanced production, testing equipment, and strict quality control methods to ensure to provide customers with high-quality products. Our P10 LED modules have passed CE, RoHS, and other certifications, and are exported to more than 100 countries and regions around the world.


P10 led panel is divided into SMD and DIP P10 led modules according to different lamp bead installation methods, RGB and single color p10 led panels according to the color of the lamp bead, and the use environment is divided into indoor and outdoor P10 led modules.

p10 rgb / full color led module

The P10 RGB led module is composed of three primary colors of red, green, and blue on a pixel, and the distance between two adjacent pixels is 10mm. Because the combination of three primary colors can display a lot of different colors, it is also called a full color P10 LED module.

  • Color: full color;
  • Pixel pitch: 10mm;
  • Scan: 1/2 scan;
  • Weight: 420g;
  • Size: 320mm x 160mm;
  • Lamps: SMD3535;
  • Brightness: 6000nits;
  • Viewing angle (H/V) : 140 / 140 degree;
  • Module Resolution: 32x16dots;
  • Pixels Density: 10000 dots/m2;

p10 dip led module

The P10 dip LED module refers to the DIP packaged lamp that passes the lamp pin through the PCB board and fills the lamp hole with tin by welding. The module made by this process is the plug-in module, and the adjacent two pixels the distance is 10mm. The advantages are high brightness and good heat dissipation.

  • Lamps: DIP346;
  • Driving Mode: 1/4 Scan;
  • Hight brightness: 8000~10000nits;
  • Module size: 160mm x 160mm;
  • Module Resolution: 16 dots x 16dots;
  • LED module weight: 0.49 kg/pcs;
  • Viewing angle (H/V) : 120º/60º ;
  • Waterproof: Front IP65;

DIP346 lamps specification

LampLuminous IntensityViewing Angle(H/V)WavelengthTest Condition
Red LED300-500mcd120º/60º620-630nm25℃,20mA
Green LED1800-2200mcd120º/60º520-535nm25℃,20mA
Blue LED250-500mcd120º/60º465-475nm25℃,20mA


p10 smd led module

The P10 SMD LED module is a component composed of SMD3535 or SMD2727 SMD LED lamp beads that are surface-mounted on the PCB and then soldered with wires, and the distance between the two adjacent lamp beads is 10mm.

  • Pixel pitch:10mm;
  • Module size:320mmx160mm;
  • Viewing angle (H/V) : 120º/60º ;
  • Scan: 1/2 or 1/4;
  • Lamps: SMD3535 or SMD2727;
  • Weight: 420 g / pcs;
  • Brightness: 6000nits;
  • Input Voltage: DC5v;


p10 red led module

P10 single red LED module is a single-pixel with only red primary color, and the distance between adjacent pixels is 10mm. It can only display information such as single red text.

  • Color: Red;
  • Lamp:DIP546;
  • Pixel pitch: 10mm;
  • LED module size: 320mm x 160mm;
  • Module Resolution: 32*16 dots;
  • Viewing angle (H/V) : 120º/60º ;
  • Density: 10,000 dots/sqm;
  • Best viewing distance(m): 6-100m;

p10 outdoor led module

The p10 outdoor led module is a model used in the outdoor environment. The front of the LED module is filled with waterproof glue, which has waterproof performance, and the back is brushed with three-proof paint for protection and has high brightness to adapt to the outdoor environment.

  • Pixel pitch:10mm;
  • Waterpoof: IP65;
  • LED module size: 320mmx160mm;
  • Module resolution: 32dots x 16dots;
  • Lamps: SMD3535;
  • HUB interface: HUB75;
  • Brightness: 6000nits;
  • Drive mode: 1/2 scan or 1/4 scan;

p10 indoor led module

The p10 indoor led module is a module for the indoor environment, the brightness is usually only about 800nits, and it is usually used for stage background lighting.

  • Pixel pitch: 10mm;
  • Drive model:1/4 or 1/8;
  • Lamp: SMD3528;
  • Module size: 320mmx160mm;
  • Resolution of module: 32dots x 16dots;
  • Viewing angle (H/V) : 140º/140º ;
  • Brightness: 800nits~1000nits;
  • Average Power Consumption: 280w/sqm;

p10 led module datasheet

Parameter Value
Red LED600 MCD (Iv typ), 620-625nm(Wave Length)
Green LED1350 MCD (Iv typ), 514-535nm(Wave Length)
Blue LED280 MCD (Iv typ), 460-475nm(Wave Length)
Pixel Configuration 1R,1G,1B 3 in 1
Pixel Pitch (mm)10mm
LampSMD3535
Module size320mmx160mmx15mm
Density10,000 pixel /㎡
Weight0.42 kg/pcs
Drive model1/2 scan
Module Resolution32 dots x 16 dots
Module pixel512 pixel
Main MaterialEngineering plastics with glass fiber
Brightness≥6000 cd/㎡
View AngleH≥110°  V≥110°
View Distance10m-100m
Gray Scale16bits
Display Color16.7M
Power voltageAC110 or 240V 50-60Hz
Maximum power consumption976 W/sqm
Average power consumption325 W/sqm
Frame Rate60Hz
Refresh Rate960Hz~3840Hz
HUB typeHUB75
Correction Scale Level16bits
Main controlNovastar, HD, linsn,colorlight ect
Lifetime100,000 hours
MTBF5000 hours
Operating Humidity RangeOperating 10~96%
Defects Rate≤0.00001
Operating Temp.-20℃ ~ +60℃
Storage Temperature-25℃ ~ +85℃
Ingress ProtectionFront IP67
Continuous Working Time≥48 hours
CertificationCE,RoHS,EMC
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD
Parameter Value
Red LED600 MCD (Iv typ), 620-625nm(Wave Length)
Green LED1350 MCD (Iv typ), 514-535nm(Wave Length)
Blue LED280 MCD (Iv typ), 460-475nm(Wave Length)
Pixel Configuration1R,1G,1B 3 in 1
Pixel Pitch (mm)10mm
LampSMD3535
Module size320mmx320mm
Density10,000 pixel /㎡
Weight1.195 kg/pcs
Drive model1/2 scan
Module Resolution32 dots x 32 dots
Module pixel1024 pixel
Main MaterialEngineering plastics with glass fiber
Brightness≥6000 cd/㎡
View AngleH≥110°  V≥110°
View Distance10m-100m
Gray Scale16bits
Display Color16.7M
Power voltageAC110 or 240V 50-60Hz
Maximum power consumption976 W/sqm
Average power consumption325 W/sqm
Frame Rate60Hz
Refresh Rate960Hz~3840Hz
HUB typeHUB75
Correction Scale Level16bits
Main controlNovastar, HD, linsn,colorlight ect
Lifetime100,000 hours
MTBF5000 hours
Operating Humidity RangeOperating 10~96%
Defects Rate≤0.00001
Operating Temp.-20℃ ~ +60℃
Storage Temperature-25℃ ~ +85℃
Ingress ProtectionFront IP67
Continuous Working Time≥48 hours
CertificationCE,RoHS,EMC
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD
ParameterValue
Red LED750 MCD (Iv typ), 620-625nm(Wave Length)
Green LED2100 MCD (Iv typ), 514-535nm(Wave Length)
Blue LED530 MCD (Iv typ), 460-475nm(Wave Length)
Pixel Pitch (mm)10mm
LampDIP346
Module size160mmx160mm
Density10,000 pixel /㎡
Drive model1/4 scan
Module Resolution16 dots x 16 dots
Module pixel256 pixel
Main MaterialEngineering plastics with glass fiber
Brightness≥8000 cd/㎡
View AngleH≥110°  V≥70°
View Distance10m-100m
Gray Scale16bits
Display Color16.7M
Power voltageAC110 or 240V 50-60Hz
Maximum power consumption976 W/sqm
Average power consumption325 W/sqm
Frame Rate60Hz
Refresh Rate960Hz~3840Hz
HUB typeHUB75
Correction Scale Level16bits
Main controlNovastar, HD, linsn,colorlight ect
Lifetime100,000 hours
MTBF5000 hours
Operating Humidity RangeOperating 10~96%
Defects Rate≤0.00001
Operating Temp.-20℃ ~ +60℃
Storage Temperature-25℃ ~ +85℃
Ingress ProtectionFront IP67
Continuous Working Time≥48 hours
CertificationCE,RoHS,EMC
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD
ParameterValue
Red LED750 MCD (Iv typ), 620-625nm(Wave Length)
Green LED2100 MCD (Iv typ), 514-535nm(Wave Length)
Blue LED530 MCD (Iv typ), 460-475nm(Wave Length)
Pixel Pitch (mm)10mm
LampDIP346
Module size320mmx320mm
Density10,000 pixel /㎡
Drive model1/4 scan
Module Resolution32 dots x 32 dots
Module pixel1024 pixel
MaskPure Black mask-high contrast screen
Brightness≥8000 cd/㎡
View AngleH≥110°  V≥70°
View Distance10m-100m
Gray Scale16bits
Display Color16.7M
Power voltageAC110 or 240V 50-60Hz
Maximum power consumption976 W/sqm
Average power consumption325 W/sqm
Frame Rate60Hz
Refresh Rate960Hz~3840Hz
HUB typeHUB75
Correction Scale Level16bits
Main controlNovastar, HD, linsn,colorlight ect
Lifetime100,000 hours
MTBF5000 hours
Operating Humidity RangeOperating 10~96%
Defects Rate≤0.00001
Operating Temp.-20℃ ~ +60℃
Storage Temperature-25℃ ~ +85℃
Ingress ProtectionFront IP67
Continuous Working Time≥48 hours
CertificationCE,RoHS,EMC
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD
ParameterValue
Pixel Pitch (mm)10mm
LampDIP546
Pixel compositionRed
Module size320mmx160mm
Density10,000 pixel /㎡
Drive model1/4 scan
Module Resolution32 dots x 16 dots
Module pixel512 pixel
Brightness≥3000 cd/㎡
View AngleH≥110°  V≥55°
Power voltageAC110 or 240V 50-60Hz
Maximum power consumption500 W/sqm
Average power consumption300 W/sqm
Frame Rate60Hz
Refresh Rate≥120 frames/sec
Main controlNovastar, HD, linsn,colorlight ect
Lifetime100,000 hours
MTBF5000 hours
Operating Humidity RangeOperating 10~96%
Defects Rate≤0.00001
Operating Temp.-20℃ ~ +60℃
Storage Temperature-25℃ ~ +85℃
Ingress ProtectionFront IP67
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD

p10 led display circuit diagram

The circuit diagram of the P10 unit board, the signal routing method, and the schematic diagram, are important reference materials for software control and maintenance.


P10 led module size

The P10 LED module size mainly is 320x160mm, 160x160mm, and 320x320mm.

  • 320mm x 160mm for P10 outdoor DIP346/SMD3535 and for P10 indoor SMD3528 full color modules;
  • 320mm x 320mm is usually used for outdoor fast lock P10 led modules (front and rear service), the lamp beads are not only SMD3535, but also DIP346;

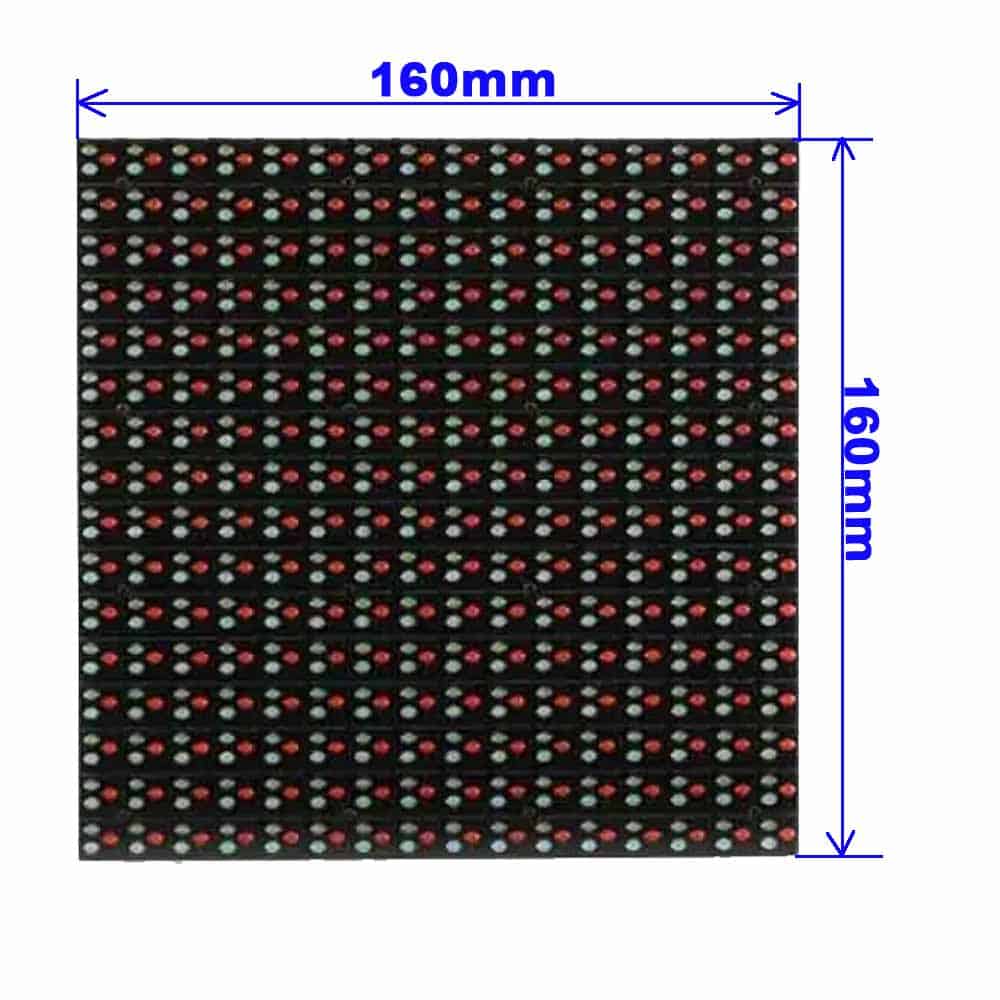

  • 160mm x 160mm outdoor P10 LED module is mainly used in DIP346 high brightness LED display.
p10 led module sizeServicelampsEnvironment
320mm x 160mmrearSMD3535/DIP346Outdoor/indoor
160mm x 160mm rear DIP346Outdoor
320mm x 320mm rear & front SMD3535/DIP346Outdoor

p10 led module power consumption

The maximum power consumption of the conventional P10 outdoor LED display is usually around 970W/sqm, and the average power consumption is around 320W/sqm. The P10 energy-saving outdoor LED display of SZLEDWORLD has a maximum power consumption of 500W/sqm and average power consumption of 150W/sqm. The energy-saving screen saves 50% of the power consumption compared to the conventional P10 LED display;

ModelSizeMaximum Power ConsumptionAverage Power Consumption
P10 outdoor LED module normal type320x160mm46W/pcs15W/pcs
P10 outdoor LED module energy saving type 320x320mm70W/pcs23 W/pcs
P10 SMD outdoor LED cabinet normal type960x1960mm970W/sqm320W/sqm
P10 DIP outdoor LED cabinet normal type960x1960mm800W/sqm350W/sqm
P10 outdoor LED cabinet energy saving960x1960mm500W/sqm150w/sqm

p10 led module programming software

As the LED display becomes more and more popular, its control software is also varied. Common control software includes Novastar, HD, colorlight, Linsn, DBstar, Xixun,HW LEDShow, etc.


p10 rgb led module controller

The p10 rgb led module controller is suitable for the control of all LED displays. These p10 rgb led module controllers have excellent performance and bring you an unparalleled operating experience and visual experience;

P10 rgb led module controllers mainly have different brands, NovaStar, HD, Colorlight, Linsn, etc. Different models have different load ranges.

p10 led module cabinet

The P10 led module cabinet is the structural part that assembles and supports the P10 LED module. It has various types. The material of the cabinets is divided into the iron cabinet and aluminum cabinets. According to the way of processing, it is divided into sheet metal cabinets and die-cast cabinets. According to the maintenance method, there are front maintenance and rear maintenance cabinets.

Videos for p10 LED display

P10 Outdoor LED Display

Frequently Asked Question


The P10 module is an LED module with a distance of 10mm between two adjacent pixels. It is divided into outdoor P10 led module, indoor P10 led module, SMD p10 LED module, DIP P10 LED module, full-color P10 led module, and single color P10 LED module.

The SMD P10 320mm x 160mm is one of the most classic and widely used models with the following features:

  1. Module size: 320mmx160mm;
  2. Pixel/module: 32dots x 16dots=512dots;
  3. Viewing Angle: 140degree/140 degree;
  4. Brightness: 6000nits~6500nits;
  5. Resolution:10,000dots/sqm;
  6. Lamps:SMD3535;

The P10 LED module is the basic unit to assemble an outdoor video wall, where P is the pitch or gap between the two lamps, and 10 is the distance between the two lamps.
P10 minimum viewing distance 10m;
Best viewing distance > 20m;
Suitable viewing distances are 10m~100m.

Step1, connect hardware devices:

  • Control signal connection, video processor to the controller to the LED screen;
  • Power supply for the LED display, usually a 3-core 2.5 square meter AC cable powers the LED display;

Step2, software control or send programs:

  • Synchronous control system: controlled by the video processor, the content played is the same as that of the computer, camera, etc.;
  • Asynchronous control system: via USB, wifi, ethernet cable, phone, or 4G cloud control LED display;
  • Synchronous and asynchronous control, with functions of both synchronous and asynchronous systems
