LED screens are seen as the totems of technological advancement, especially with the emergence of 3D LED displays painting the skylines of many popular and developed cities. The global market size of the LED display industry is expected to grow to 23.3 billion USD by 2030 according to Zion market research, so it might be a good consideration to invest in the field. From the display to the LED screen frame, you can check out the best component to invest in.

LED displays are eye-catching but when they are installed improperly, it can be a big disaster. This is how important an LED display frame is, especially since all the LED screens may come tumbling down when not properly installed. This means that choosing the right type and design for the frames will be vital for your investment.

Before investing in LED screen frames, you should know how to get the best out of that investment. More than just checking out the standard steel structure for LED display price, you also need to check out the options you can get to invest in.

What is an LED Screen Frame?

An LED screen frame is a strong and durable structure that supports the entire LED display. These frames help to keep the LED panels and screens balanced and fixed in the location where they need to be. They provide security for the entire installation and guarantee that the LED screens are shown to the maximum viewing reach possible.

When the LED modules are installed in an unstable manner, there is a higher chance for the screens to malfunction due to weathering elements like strong winds and heavy rainfall. These LED display frames provide a sturdy foundation for the screen to hold on and appear shaky even with the speakers’ vibration and the collision of external elements.

LED screen frames are highly customizable. While there are basic types you can choose from, you can personalize these structures according to the following aspects:

  • Conceptual vision and requirements
  • Environmental provisions and particulars
  • Architectural designs of buildings and structures
  • Budget
  • Location of the installation

In general, LED screen frames are either made from stainless steel or aluminum alloy. Some customize a mix of both, where an aluminum alloy frame is coated with a thin layer of stainless steel as its outdoor skin. This makes the steel structure for LED display price higher compared to when it’s just marketed as aluminum alloy.

What Are the Different Types of LED Screen Frames?

LED screen frames can come in the form of a steel display stand or a hanging frame. The style of the structure will depend solely on the design of the LED display. The assembly of these frames needs to be well-coordinated, along with the LED modules, controller, and the cables that connect them to each other.

These LED display frames have three major types you can consider. These are based on where the structure is installed in the first place, including the following:

  • Fixed – This refers to the LED screen frames that are installed fixedly on a particular structure, whether it’s a building or a wall.
  • Mobile – This refers to the structure used when the LED screens are installed in a vehicle, including a bus or taxi.
  • Independent Installation – This refers to when the LED screen is installed in a standalone structure like how digital billboards are.

Besides these three major types of LED display frames, here are some of the most common types you can see in popular cities today.

Hanging LED Screen Frame

Hanging LED screen frames are structures that are usually fixed into the buildings and hung on the side. The frames use the beams of the buildings they’re installed in to carry the weight of the entire LED display ensemble.

Standing (Two-Pole) LED Screen Frame

For standing installation of LED display frames, poles are often used for independent installation. The entire weight of the LED screen project is supported by the poles that attach these frames to the ground. These poles can be made of either wood or metal, depending on what you find ideal for your project.

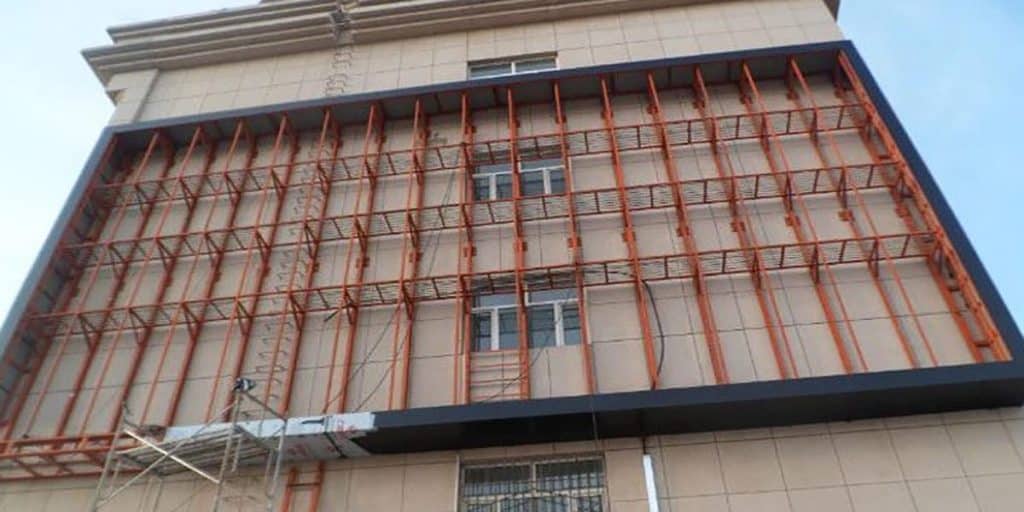

On-the-wall LED Screen Frame

For this type of LED screen frame, the skeletal structure is designed to conform to the architectural design of the building or establishment. The shape and size of the frame will depend on the building it’s attached to.

If you’ll be working on this type of frame, make sure that the material of the wall you plan to use for mounting is strong enough to carry the weight of the entire LED display package.


Outdoor LED display frames simply refer to the structures that are designed for outdoor installation. Compared to their indoor counterparts, these frames are much more durable and resistant to weathering elements like moisture and wind. Since they will be used outdoors and exposed to all sorts of elements, they are structured to be better protected, especially if they will be handling the weight of the LED screens.


An indoor LED screen frame is the structure used to carry indoor LED displays. Many of the indoor frames are full wall mounts or hanging frames, depending on the design of the LED screen that’s being installed.


Just as it’s named, a curved LED display frame refers to the LED’s skeletal framework to be compatible with the shape of the curved LED screens. Depending on the curve of the LED screen, you should make sure that the frame follows the shape of the display effortlessly and seamlessly. In this case, it might be a better option to have the frame customized just to be sure it matches the LED display.

How to Install an LED Screen Frame

LED screen frames can be installed professionally or by yourself, depending on many factors like your technical knowledge about LED display frame installation, the size of the frame, the complexity of the type of installation, and the availability of tools necessary for the installation. Technicians have everything they need for the installation but you would need the tools that will be used for it.

If you choose to install the frames with your own hands, having basic knowledge is the first step. You need to know about the items you will use for the tasks.

If you want to have a general idea of how to install an LED screen frame, here is a step-by-step guide on the basics you can follow:

Step 1: Preparing the LED Screen Frame

The first step is to make sure that the LED display frame is prepared and ready for installation. It may be that it’s already set on the building, ceiling, or the ground, depending on the type of frame you’re working on.

Once you’ve checked on the frame, focus on the installation spot and whether the support is stable enough to carry the weight of the frame and the LED display. Here are some of the most common things used as a support for the frames:

  • Crank brackets
  • Ground mounts
  • Clamps and chain hoists
  • Slings
  • Truss
  • Goalpost lifting systems
  • Beams, pillars, & accessories

Step 2: Install Cabinets

Place the cabinets on the LED screen frame using support rods. Make sure you start at the lowest part of the frame and make your way up.

Step 3: Connect Cabinets To Frame

In installing the LED display cabinets, make it a point to carefully connect each cabinet to the frame using M10 screws and connection plates. Using the M10 screws, carefully connect the plate to the hole located at the back of the LED display cabinet

Step 4: Connect the Cabinets

Install the second cabinet beside the first cabinet you installed. After tightly connecting the second cabinet to the LED screen frame, connect tightly the cabinets together too using a connection plate and M10 screws.

Step 5: Connect All The Necessary Cables

After connecting all the LED display cabinets to the frame and each other, connect all the cables on the modules, including the signal cables and internal power cables.

Step 6: Test the LED Screen

Once you’ve connected all the cables and plugged in everything, the next step is to try out the LED screen if it’s working normally. Program the screen according to your requirements and then check if each LED module is functioning properly.

In the process of installing the LED displays and cabinets to the LED screen frame, here are some practical tips to bear in mind.

  • Make sure that when you position each cabinet, there’s no gap in between
  • Install the LED display cabinets on the frame level by level
  • Handle the LED display with care and make sure you don’t bump or drop the LED screen cabinets when installing them
  • Do not install the LED screen and frame alone but get someone to help you with it

How to Choose the Right LED Screen Frame for Your Needs

When choosing the perfect LED screen frame for you, here are some of the vital factors that can be taken into account to get the ideal investment:

  • Shape and Size of LED Screen – The LED display frame conforms to the shape and size of the LED screen and cabinet so this needs to be looked into before choosing a frame for your screen.
  • Type of LED Screen – Transparent and curved LED screens may require a unique type of frame you have to customize based on their properties.
  • Application of LED Screen – Indoor LED screen frames are constructed differently than outdoor frames, especially in terms of durability and protection levels.
  • Budget for the Project – The materials used to build LED display frames will dictate the prices of the frames. Stainless steel frames will be more expensive than structures made from aluminum alloy.


An LED screen frame is a highly important part of an LED display’s operation. Despite often being overlooked, this structure provides the stability that the LED display needs to effectively operate. With many types of LED display frames to consider, you can choose the ideal structure that will fit your LED screen.

Once you’ve chosen the frame to invest in, make sure you install the LED screen, cabinet, and frame properly to avoid possible malfunction. If you don’t know what to do, contact an expert to work on it for you.
