Outdoor LED Display
| Pixel pitch | 4MM | 5MM | 6.6MM | 8MM | 10MM |
|---|---|---|---|---|---|
| Cabinet (dots) | 240×240 | 192×192 | 144×144 | 120×120 | 96×96 |
| Brightness(nits) | ≥6000 | ≥6000 | ≥6000 | ≥5800 | ≥6000 |
FOM960 outdoor led display feature

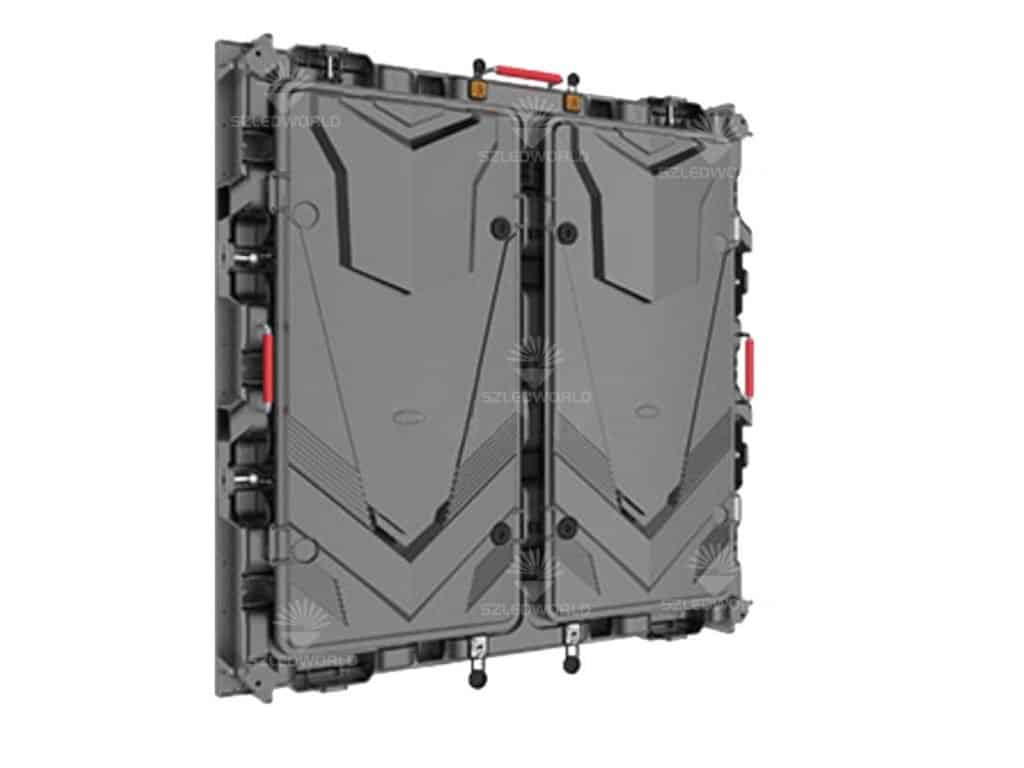

- 960mm x 960mm alloy die-casting cabinet, suitable for P4, P5, P6.67, P8, P10
- The weight is very light, only 25 kg/cabinet;
- It is very thin, only 102 mm
- Used for both rental and fixed installation;
- With top hat, legs, and soft masks for stadium application;
- Power connectors & ethernet connectors & fast locks design to realize quick assemble and disassemble
- Waterproof front IP65, back IP54
- High precision machining, the flatness better than normal cabinet
- Both for front and rear service
FOM960 outdoor led screen description
960mm Magnesium-Alloy outdoor LED display
FOM960 is SZLEDWORLD’s cost-effective multifunctional LED display. The cabinet is made of magnesium alloy materials and high-precision molds. It can be applied to fixed installation LED display. rental LED display. indoor LED display. outdoor LED display. stadium LED display. commercial LED display. etc
cabinet For P4,P5,P6.6,P8,P10 Outdoor LED module
The standard size of FOM960 is W960mm * H 960mm. It can be compatible with P4, P5, P6.6, P8, P10 outdoor LED modules which size are all Width320mm x Height160mm. So when we change the screen model, we only need to change the different modules. For example, if we want to change P10 to P5, we only need to replace the LED module. and all other materials are the same as before, thus saving costs.
Rental and fixed cabinet design
FOM960 series LED display can be used for fixed installation. It has the following characteristics, so it can be used for rental also:
- Making of magnesium-Alloy is very light and thin, so it is easy to handle and transport;
- Equipped with locks and connectors, so it is easy to install and disassemble;
- Back support and the hanging beam can be selected to realize the rental installation
Super light and ultrathin LED display outdoor cabinet
The weight of the cabinet is 25.8kg/pcs, and the thickness of the LED screen is only 105mm. This lighter weight and smaller volume, not only can save transportation costs but also it’s easier to install and disassemble.
Applied to outdoor stadium LED display
FOM960 series outdoor LED display can be equipped with soft masks, top hats, and mounting legs, which can be used for outdoor peripheral screen advertising.
- The soft top hat can prevent people from injuries when they hit the led display;
- The soft mask can protect the lamps when a ball or a person hits the front of the screen;
- The legs can install the outdoor led screen around the stadium, and the installation angle is adjustable;
High precision and seamless assembly
Produced by CNC high precision machining, good flatness, no gaps between two cabinets while splicing. So as to present the perfect visual to customers.
IP65 waterproof
With the front IP65 waterproof grade and magnesium alloy material. the LED display more stable and can be used in more complex outdoor environments.
Compatible with indoor LED modules
960mm x 960mm magnesium alloy cabinet is not only suitable for outdoor P4, P5, P6.6, P8, P10. It is also compatible with P2.5, P3.04, P4, P5, P10 indoor LED modules
| Outdoor LED modules | Indoor LED modules |
|---|---|
| P4 | P2.5 |
| P5 | P3.07 |
| P6.6 | P4 |
| P8 | P5 |
| P10 | P10 |
Package
The fixed-installed LED display is packed in a wooden box, it is one-time use. the rental display is packed in a flight case, which can be reused.
FOM960 outdoor led display specification
| Pixel pitch | P4 | P5 | P6.6 | P8 | P10 |
|---|---|---|---|---|---|
| LED type | SMD 1921 | SMD 1921 | SMD 3535 | SMD 3535 | SMD 3535 |
| Pixel configuration | 3-in-1 SMD | 3-in-1 SMD | 3-in-1 SMD | 3-in-1 SMD | 3-in-1 SMD |
| Pixel density | 62500 pixels/m2 | 40000 pixels/m2 | 22500 pixels/m2 | 15625 pixels/m2 | 10000 pixels/m2 |
| Module dimension(W*H) | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Module resolution | 80*40dots | 64*32dots | 48*24dots | 40*20dots | 32*16dots |
| Cabinet size (W*H) | 960*960mm | 960*960mm | 960*960mm | 960*960mm | 960*960mm |
| Cabinet depth | 88mm | 88mm | 88mm | 88mm | 88mm |
| Cabinet material | Mag-Alloy | Mag-Alloy | Mag-Alloy | Mag-Alloy | Mag-Alloy |
| Cabinet weight | 25.8kg/pcs | 25.8kg/pcs | 25.8kg/pcs | 25.8kg/pcs | 25.8kg/pcs |
| Brightness | ≥5500 cd/m2 | ≥5500 cd/m2 | ≥5500 cd/m2 | ≥5800 cd/m2 | ≥6000 cd/m2 |
| Best Viewing Distance | 4m to 40m | 5m to 50m | 6m to 60m | 8m to 80m | 10m to 100m |
| Viewing Angle | 140 * 140 | 140 * 140 | 140 * 140 | 140 * 140 | 140 * 140 |
| Grey Level | 14 Bit | 14 Bit | 14 Bit | 14 Bit | 14 Bit |
| Refresh Rate | ≥960HZ | ≥960HZ | ≥960HZ | ≥960HZ | ≥960HZ |
| Power consumption(Avg.) | 300w/cabinet | 300w/cabinet | 270w/cabinet | 300w/cabinet | 300w/cabinet |
| Power consumption(Max.) | 900w/cabinet | 900w/cabinet | 800w/cabinet | 900w/cabinet | 900w/cabinet |
| Humidity-operating | 10% ~ 95% | 10% ~ 95% | 10% ~ 95% | 10% ~ 95% | 10% ~ 95% |
| Operating Temperature | -20° – 50° C | -20° – 50° C | -20° – 50° C | -20° – 50° C | -20° – 50° C |
| Screen life | ≥100000 hours | ≥100000 hours | ≥100000 hours | ≥100000 hours | ≥100000 hours |
| Controlling System | Synch or Async | Synch or Async | Synch or Async | Synch or Async | Synch or Async |
| Certificates | CE,RoHs,FCC,UL | CE,RoHs,FCC,UL | CE,RoHs,FCC,UL | CE,RoHs,FCC,UL | CE,RoHs,FCC,UL |
| Ingress Protection (IP) | IP65 | IP65 | IP65 | IP65 | IP65 |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years |
