LM6™ led MESH SCREEN

Pixel Pitch P37.5-P200

LM6™ LED MESH SCREEN

LM6-led mesh screen details-6
LM6-led mesh screen details-6
LM6-led mesh screen details-1
LM6-led mesh screen details-1
LM6-led mesh screen details-2
LM6-led mesh screen details-2
LM6-led mesh screen details-3
LM6-led mesh screen details-3
LM6-led mesh screen details-4
LM6-led mesh screen details-4
LM6-led mesh screen details-5
LM6-led mesh screen details-5
LM6-Mesh led screen banner
LM6-Mesh led screen banner

LM6 is a flexible transparent LED mesh display for outdoor use whose pixel contains six LED lamp beads. High brightness, used in outdoor exterior wall display advertising and decoration.

  • Brightness: 350nits~7200nits;
  • Pixel configuration: 6-in-1 SMD
  • LED type: SMD3535;
  • Weight:0.9~10.5kg/sqm;
  • Transparency: 55%~98%;
  • Cost-effective;

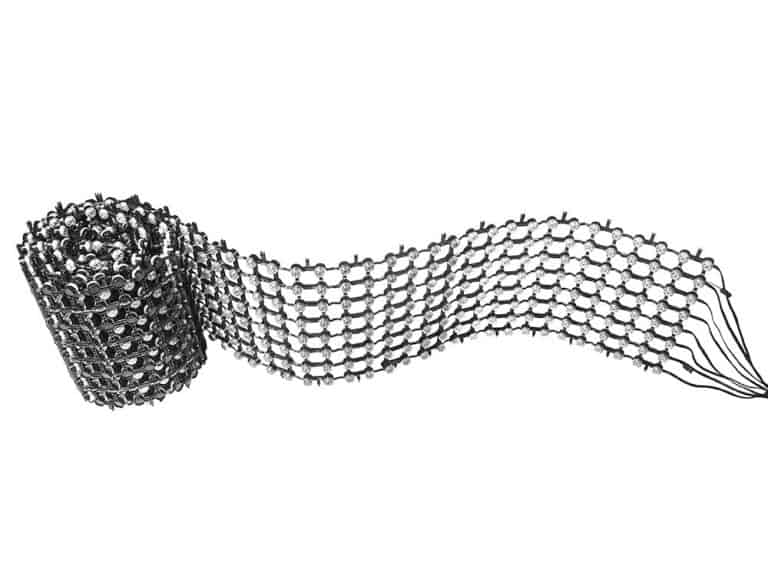

Flexible & soft

  • The LM6 led mesh screen can be quickly assembled into a flat surface or bent up, down, left, and right to fit the building surface;
  • The pixel pitch, mesh led screen size, and screen color can be customized;

  • LM6-led mesh screen details-6
    LM6-led mesh screen details-6

High transparency & permeability

  • High transparency, does not affect the appearance of the wall and is well integrated with the wall;
  • It will not block the light from existing windows or glass;
  • Effectively resist wind resistance, making the screen more durable;
  • The weight of the screen is lighter.

Quick connection

Quick splicing with hooks and buttons between 2 units, saving installation costs

  • LM6-led mesh screen details-5
    LM6-led mesh screen details-5
  • LM6-led mesh screen details-4
    LM6-led mesh screen details-4

Hanging installation

  • The screen is ultra-light and easy to install without a complicated steel frame structure;
  • The screen comes with two connectors, which can be quickly installed on the hanging beam.

Creative styling

  • The LED lamp bar can be taken out separately to realize various creative shapes;
  • This also facilitates quick and easy maintenance of lamp beads, ICs and other parts.

  • LM6-led mesh screen details-3
    LM6-led mesh screen details-3
  • LM6-led mesh screen details-1
    LM6-led mesh screen details-1

IP65 waterproof

The PCB board is filled with waterproof glue, the front and back are bothIP65, with waterproof connectors on the head and tail

LM6- LED Mesh Screen Specifications

Pixel PitchP37.5P56.25P62.5P75P100P150P200
LED typeSMD3535SMD3535SMD3535SMD3535SMD3535SMD3535SMD3535
Pixel configuration6-in-1 SMD6-in-1 SMD6-in-1 SMD6-in-1 SMD6-in-1 SMD6-in-1 SMD6-in-1 SMD
Pixel density711pixels/m2316
pixels/m2		256
pixels/m2		178pixels/m2100pixels/m244pixels/m225pixels/m2
Unit dimension(W*H)0.3 x 4.8m0.45 x 7.2m0.5 x 8m0.6 x 9.6m0.8 x 12.8m1.2 x 19.2m1.6 x 25.6m
Unit resolution8*128dots8*128dots8*128dots8*128dots8*128dots8*128dots8*128dots
Drive Methodstatic static static static static static static
Weight10.5kg/sqm5.5kg/sqm5kg/sqm3.5kg/sqm1.5kg/sqm1.3kg/sqm0.9kg/sqm
Brightness7200nits 5100nits3400nits2400nits1350nits600nits350nits
Viewing Angle140°/110°140°/110°140°/110°140°/110°140°/110°140°/110°140°/110°
Transparency Rate55%75%80%85%90%95%98%
Refresh Rate2000Hz2000Hz2000Hz2000Hz2000Hz2000Hz2000Hz
Power consumption(Avg.)267 w/cabinet123 w/cabinet100 w/cabinet73w/cabinet40W/sqm17W/sqm10W/sqm
Power consumption(Max.)800W/sqm370W/sqm300W/sqm220W/sqm120W/sqm52W/sqm30W/sqm
Grey Level 16 bit 16 bit 16 bit 16 bit 16 bit 16 bit 16 bit
Humidity-operating10% ~ 90%10% ~ 90%10% ~ 90%10% ~ 90%10% ~ 90%10% ~ 90%10% ~ 90%
Operating Temperature-20° – 60° C-20° – 60° C-20° – 60° C-20° – 60° C-20° – 60° C-20° – 60° C-20° – 60° C
Input voltageAC 100~240V; 50/60HzAC 100~240V; 50/60HzAC 100~240V; 50/60HzAC 100~240V; 50/60HzAC 100~240V; 50/60HzAC 100~240V; 50/60HzAC 100~240V; 50/60Hz
Working voltage15V DC15V DC15V DC15V DC15V DC15V DC15V DC
Screen life≥100000 hours≥100000 hours≥100000 hours≥100000 hours≥100000 hours≥100000 hours≥100000 hours
Controlling SystemSync or AsyncSync or AsyncSync or AsyncSync or AsyncSync or AsyncSync or AsyncSync or Async
CertificatesCE,RoHS,FCC,ULCE,RoHS,FCC,ULCE,RoHS,FCC,ULCE,RoHS,FCC,ULCE,RoHS,FCC,ULCE,RoHS,FCC,ULCE,RoHS,FCC,UL
Ingress Protection (IP)IP66IP66IP66IP66IP66IP66IP66
Warranty2 Years2 Years2 Years2 Years2 Years2 Years2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD
