RP500 series rental led Screen

500mm x 500mm cabinet

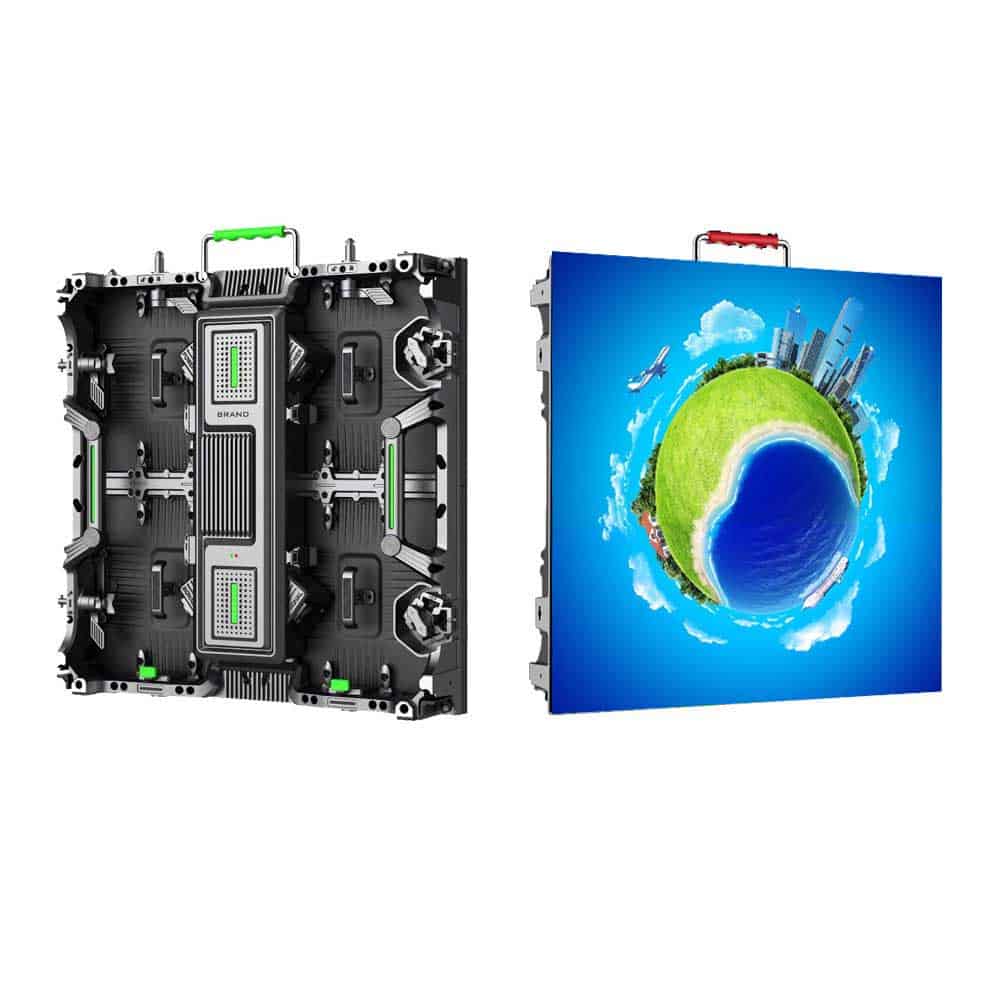

RP500 Rental LED display


RP500 is a new hot selling rental LED display suitable for indoor and outdoor. Its maintenance method can be front maintenance or rear maintenance. The LED modules are not divided into left and right sides and are compatible with arc locks, which can create a variety of shapes on the stage.

RP500 is the code of SZLEDWORLD’s rental series, the cabinet size is 500mm x 500mm, it is suitable for P2.604, P2.97, P3.91, P4.81, and suitable for 250x250mm LED modules.

It is widely used in stage performances, concerts, cultural evenings, opening ceremonies, auto shows, hotel rentals, TV broadcasting, and other fields.

Features

  • The integrated control box can 10s change the power supply and card;
  • Conventional door and integrated control box doors can be selected;
  • LED modules are not divided into left and right;
  • Stainless steel lock with self-locking function, easy and fast operation;
  • Magnetic module design to realize quick front and back service;
  • Suitable for P2.976, P3.91, P4.81 outdoor;
  • Indoor P2.604, P2.976, P3.91, P4.81;
  • Thin cabinet: 87mm ;

Cabinet structure

The RP500 rental led display cabinet adopts the combination of aesthetics and industrial design concept, comfortable and durable handle, positioning rod for quick installation and positioning, lamp bead protection block, LED module fixing handle, magnetic LED module, fast self-locking function Lock, fixed slot, lamp bead protection block, compatible with arc lock, etc.

Anti-collision system

RP500 rental LED display cabinet as it often needs to be assembled, disassembled, and transported. During this process, the lamp beads in the cabinet are easily damaged by knocking, especially the lamp beads in the four corners of the cabinet. The four corners of the cabinet are designed with anti-collision blocks to effectively protect the lamps of the four corners of the cabinet.


Rental led display installation locks

  • The lock head and cleat are made of stainless steel, which is more resistant to acid and alkali corrosion than iron, not easy to rust, and will not be affected even in harsh environments;
  • When the lock head is connected with the lock plate, it has a self-locking function, and the cabinets can be locked by the one-handed operation to improve work efficiency.

IP65 waterproof

The power supply and the receiving card can be assembled on the door, which is more The rubber ring surrounds the periphery of the rear cover for waterproofing. The cabinet is made of aluminum for natural heat dissipation and has no exhaust vents. The front and rear of the cabinet are both IP65 waterproof.

Curved locks

The cabinet uses high-precision surface joint curved locks. it has higher precision than traditional arc locks. and the arc adjustment range is from -10 degrees to +10 degrees.

LED Module quick maintenance

  1. The module is directly adsorbed on the cabinet with magnets. When disassembling the module, the module is directly pulled out with a vacuum chuck, and the new module is adsorbed to the cabinet with magnets to achieve rapid replacement.
  2. In order to make the module firm and reliable after installation, we can use the mounting knobs to fix the module.

Thin and Lightweight

The LED screen is thin, the thickness of the cabinet plus the LED module is 87mm, and the weight is only 8kg/cabinet, so it is easy to install, disassemble and transport when renting.

RP500 outdoor rental LED Display Specifications

Pixel Pitch P2.97 P3.91 P4.81
LED typeSMD1415SMD1921SMD1921
Pixel configuration3-in-1 SMD3 in 1 SMD3-in-1 SMD
Pixel density112,896 pixels/m265,536 pixels/m243,264 pixels/m2
Module dimension(W*H)250*250mm250mmx250mm250mmx250mm
Module resolution84*84dots64*64dots52*52dots
Drive Method1/21 scan1/16 scan1/13 scan
MaintenanceFront and backFront and backFront and back
Cabinet size (W*H)500*500mm500x500mm500x500mm
Cabinet depth87mm87mm87mm
Cabinet material Aluminum Aluminum Aluminum
Cabinet weight8.5kg/pcs8.5kg/pcs8.5kg/pcs
Brightness≥4000 cd/m2≥4000 cd/m2≥4000 cd/m2
Best Viewing Distance3m to 30m4m to 40m5m to 50m
Viewing Angle140 * 140140 * 140140 * 140
Grey Level14 Bit14 Bit14 Bit
Refresh Rate≥1920HZ / 3840HZ≥1920HZ / 3840HZ≥1920HZ / 3840HZ
Power consumption(Avg.)70w/cabinet65w/cabinet60w/cabinet
Power consumption(Max.)200w/cabinet195w/cabinet190w/cabinet
Humidity-operating10% ~ 95%10% ~ 95%10% ~ 95%
Operating Temperature-20° – 50° C-20° – 50° C-20° – 50° C
Screen life≥100000 hours≥100000 hours≥100000 hours
Controlling SystemSync or AsyncSync or AsyncSync or Async
CertificatesCE,RoHS,FCC,ULCE,RoHS,FCC,ULCE,RoHS,FCC,UL
Ingress Protection (IP)IP65IP65IP65
Warranty3 Years3 Years3 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.

RP500 Indoor rental LED Display Specifications

Pixel Pitch P2.604 P2.97 P3.91 P4.81
LED typeSMD2121/1515SMD2121SMD2121SMD2121
Pixel configuration3-in-1 SMD3-in-1 SMD3 in 1 SMD3-in-1 SMD
Pixel density147,456 pixels/m2112,896 pixels/m265,536 pixels/m243,264 pixels/m2
Module dimension(W*H)250*250mm250*250mm250*250mm250*250mm
Module resolution96*96dots84*84dots64*64dots52*52dots
Drive Method1/32 scan1/21 scan1/16 scan1/13 scan
MaintenanceFront and backFront and backFront and backFront and back
Cabinet size (W*H)500*500mm500*500mm500*500mm500*500mm
Cabinet depth87mm87mm87mm87mm
Cabinet material Aluminum Aluminum Aluminum Aluminum
Cabinet weight8kg/pcs8kg/pcs8kg/pcs8kg/pcs
Brightness≥1000 cd/m2≥1000 cd/m2≥1000 cd/m2≥1000 cd/m2
Best Viewing Distance2.5m to 25m3m to 30m4m to 40m5m to 50m
Viewing Angle140 * 140140 * 140140 * 140140 * 140
Grey Level14 Bit14 Bit14 Bit14 Bit
Refresh Rate≥1920HZ / 3840HZ≥1920HZ / 3840HZ≥1920HZ / 3840HZ≥1920HZ / 3840HZ
Power consumption(Avg.)60w/cabinet55w/cabinet50w/cabinet50w/cabinet
Power consumption(Max.)170w/cabinet160w/cabinet150w/cabinet150w/cabinet
Humidity-operating10% ~ 95%10% ~ 95%10% ~ 95%10% ~ 95%
Operating Temperature-20° – 50° C-20° – 50° C-20° – 50° C-20° – 50° C
Screen life≥100000 hours≥100000 hours≥100000 hours≥100000 hours
Controlling SystemSync or AsyncSync or AsyncSync or AsyncSync or Async
CertificatesCE,RoHS,FCC,ULCE,RoHS,FCC,ULCE,RoHS,FCC,ULCE,RoHS,FCC,UL
Ingress Protection (IP)IP31IP31IP31IP31
Warranty2 Years2 Years2 Years2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.

Video for P3.91 outdoor rental led screen

Related product

RP500 Rental LED Display

RP500 indoor series rental LED display is a hot-selling product. It is used in stage performances. It consists of a large screen in the middle and a small LED display on two sides. It can display three identical images or three different images.

  • Pixel pitch: P4.81;
  • Middle LED Display size: W16pcs x H8pcs ,total 128pcs cabinets;
  • Sides LED Display size: W4pcs x H8pcs x 2 sets,total 64pcs cabinets;
  • Cabinet size: 500mm x 500mm;
  • Maintenance : Front and Back;
  • Cabinet Weight:8kg/pcs;
  • Resolution: 43,264.
