LRO8 outdoor rental led display

640mm x 640mm cabinet

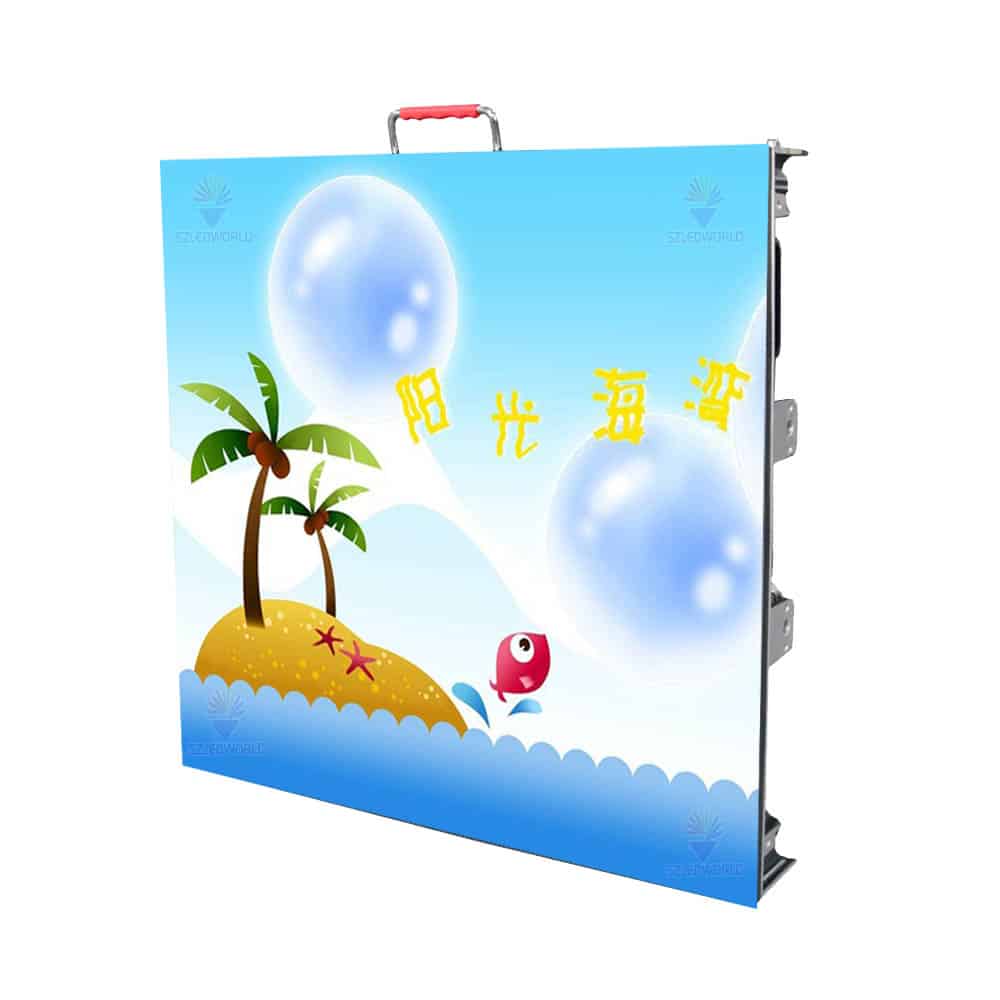

P8 OUTDOOR RENTAL LED DISPLAY


P8 outdoor rental led display, its pixel pitch is P8mm, using SMD3535 lamp beads, with high weather resistance, high brightness, lightweight, thin thickness, cabinet size is 640mm x 640mm, and with quick locks, suitable for the indoor and outdoor rental environment. Its price is around 324 USD.

P8 outdoor rental LED display is mainly suitable for outdoor stages, anniversaries, weddings, promotions, concerts, etc.

SZLEDWORLD is a Chinese top P8 outdoor rental LED display manufacturer, we have more than 14 years of industry experience, providing high-quality products and services. Welcome to wholesale our P8 outdoor rental LED display, P3.91, P4.81, P5, P6, P8, P10 outdoor rental can be provided options.

Features

  • 640x640mm die-casting cabinet;
  • High brightness: ≥5500 cd/m2;
  • Tool-free assembly and disassembly;
  • Superb white balance and wide view angles;
  • Seamless connection;
  • Lightweight: 8kg;
  • Thin cabinet: 89.5mm ;
  • Pixel density: 15,625 pixels/m2


High-quality SMD3535 LEDs

We use high-quality Nationstar lamp LEDs with good waterproof, high reliability, high brightness, and well-designed as our unit display pixels, which can improve the stability and display effect of the whole screen.

  • matte surface, excellent contrast,100% smoothness;
  • Surface uniform output solves picture distortion problems even on light distribution surfaces;
  • Low pins high frame-ease in glue potting and mask design.

Professional cabinet design

The cabinet is designed with quick-installed locks, connectors, positioning pins, and the rear door is designed with enough space to place components, and is compatible with the structure of direct connection of network cables.

Structural strength and lightweight

On the premise of ensuring the structural strength of the product is strong enough, the weight of the product is very light, which is easy to install, disassemble, and transport

Wide viewing angle

Using wide viewing angle SMD lamps, the vertical and horizontal viewing angle range can reach 160 degrees. looking from these directions, it can still maintain a clear and vivid picture and provide users with a perfect feeling.

Connectors

The ethernet cables and AC cables of the two cabinets are connected by connectors to realize quick connection and disassembly, which meets the needs of rapid installation and disassembly of stage rental screens.

Lightweight and thin

The cabinet is lightweight, 11.9 kg/pcs, the cabinet is ultra-thin, 89.5mm, easy to install and disassemble, and transport, saving manpower and material resources.

P8 outdoor rental LED display Specifications

Pixel PitchP8
LED typeSMD3535
Pixel configuration3 in 1 SMD
Pixel density15,625 pixels/m2
Module dimension(W*H)320*160mm
Module resolution40*20dots
Drive Method1/5 scan
MaintenanceRear
Cabinet size (W*H)640*640mm
Cabinet depth89.5mm
Cabinet material Aluminum
Cabinet weight11.9kg/pcs
Brightness≥5500 cd/m2
Best Viewing Distance8m to 80m
Viewing Angle140 * 140
Grey Level14 Bit
Refresh Rate≥1920HZ
Power consumption(Avg.)135w/cabinet
Power consumption(Max.)400w/cabinet
Humidity-operating10% ~ 95%
Operating Temperature-20° – 50° C
Screen life≥100000 hours
Controlling SystemSync or Async
CertificatesCE,RoHS,FCC,UL
Ingress Protection (IP)IP65
Warranty3 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.

Video for P8 outdoor rental led display

Brochures for P8 outdoor rental led display

Related product

Outdoor rental LED displays

Indoor rental LED displays

LRO8 Outdoor Rental LED Display

The P8 outdoor rental LED display is used in weddings and receptions held nearby the sea. The LED display body is fixed on the table with back supports, which is convenient and quick to install and disassemble.

  • Brightness: 6000 nits;
  • Cabinet size (W*H): 640x640mm;
  • Cabinet depth: 89.5mm;
  • LED display size:5.76m x 3.84m;
  • Cabinet weight:11.9kg/pcs;
  • Location: Angola
