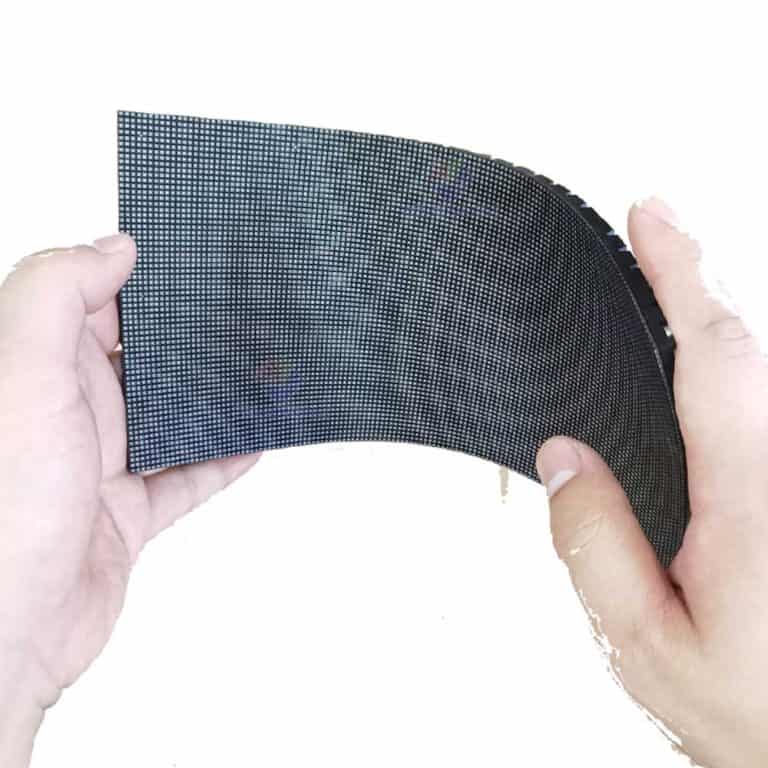

Flexible LED display module

The flexible LED module is different from the standard LED module, it is a LED module that can be flexibly bent into various angles. It is also known as a soft LED module.

SZLEDWORLD is your professional flexible led module manufacturer in China. After 14 years of development, our soft modules both can be used indoors and outdoors. Models are P2, P2.5, P3, P4, P1.25… Our company has passed ISO9001, ISO27001, and ISO14001, the products have CE, RoHS, FCC, LVD, and other certifications.

  • PCB, base shell, and mask are flexible materials;
  • 240x120mm, 320x160mm, 256x128mm size for option;
  • Suitable for cylindrical, spiral, wave, and streamer LED screens;
  • Ultra-thin and very light;
  • Can be installed without a cabinet;
  • Strong magnetic adsorption installation, simple and fast;

Outdoor & indoor flexible LED module

Different flexible LED display module size

320x160mm flexible led display module

320x160mm flexible led module

Suitable pixel pitch P1.86, P2, P2.5, P3.076

240x120mm flexible led module

240x120mm flexible led module

Pixel pitch P1.25, P1.5, P1.6, P1.8, P2, P2.5, P3, P4

256x128mm flexible led module

256x128mm flexible led module

Suitable pixel pitch P2, P4

Different pixel pitch flexible led display module

P1.25 flexible led display module

P1.25mm

Size: 240x120mm, resolution:192×96

P1.579 flexible led display module

P1.579mm

Size: 240x120mm, resolution:152×76

P1.667 flexible led module

P1.667mm

Size: 240×120 resolution:144×72

P1.86 flexible led module

P1.86mm

Size: 320x160mm, resolution:172×86

P1.875 flexible led module

P1.875mm

Size: 240x120mm, resolution:128×64

P2 flexible led module

P2mm

Size: 240x120mm, resolution:120×60

P2.5 flexible led display module

P2.5mm

Size: 240x120mm, resolution:96×48

P3 flexible led display module

P3mm

Size: 240x120mm, resolution:80×40

P3.076 flexible led module

P3.076mm

Size: 320x160mm, resolution:104×52

P4 flexible led module

P4mm

Size: 240x120mm, resolution:60×30

Flexible LED module specification

Pixel pitchP1.86
Pixel Configuration1R1G1B
LampSMD1212
Pixel Density (dots/m2)288,906
LED module size(mm)320×160
Pixel / Module172×86
Diver mode1/43
refresh rate (Hz)3840
Frame frequency (Hz)50&60
Grayscale (bit)12-16 adjustable
Signal interfaceHUB75
Bottom Case MaterialSilicone
Weight (kg/pcs)0.3
Servicefront&back
Brightness≥650
Color Temperature3000~10000
Viewing Angle140O/160O
Contrast5000:1
LED module voltageDC5v
Module Max electric current (A)5
Module Max power consumption (w)25
Supply Voltage AC (V)110~220
Max power consumption (w/m2)800
Average power consumption (w/m2)270
Led Life (Hours)100,000
Operating Temperature(ºC)-10~+50
Storage Temperature(ºC)-20~+60
Operating Humidity(RH)20%-85%
Storage Humidity(RH)20%-80%
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel pitchP2
Pixel Configuration1R1G1B
LampSMD1515
Pixel Density (dots/m2)250,000
LED module size(mm)320×160
Pixel / Module160×80
Diver mode1/40
refresh rate (Hz)3840
Frame frequency (Hz)50&60
Grayscale (bit)12-16 adjustable
Signal interfaceHUB75
Bottom Case MaterialSilicone
Weight (kg/pcs)0.315
Servicefront&back
Brightness≥700
Color Temperature3000~10000
Viewing Angle140O/160O
Contrast5000:1
LED module voltageDC5v
Module Max electric current (A)5
Module Max power consumption (w)25
Supply Voltage AC (V)110~220
Max power consumption (w/m2)800
Average power consumption (w/m2)270
Led Life (Hours)100,000
Operating Temperature(ºC)-10~+50
Storage Temperature(ºC)-20~+60
Operating Humidity(RH)20%-85%
Storage Humidity(RH)20%-80%
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel pitchP2.5
Pixel Configuration1R1G1B
LampSMD1515
Pixel Density (dots/m2)160,000
LED module size(mm)320×160
Pixel / Module128×64
Diver mode1/32
refresh rate (Hz)≥1920
Frame frequency (Hz)50&60
Grayscale (bit)12-16 adjustable
Signal interfaceHUB75
Bottom Case MaterialSilicone
Weight (kg/pcs)0.269
Servicefront&back
Brightness≥750
Color Temperature3000~10000
Viewing Angle140O/160O
Contrast5000:1
LED module voltageDC5v
Module Max electric current (A)5
Module Max power consumption (w)25
Supply Voltage AC (V)110~220
Max power consumption (w/m2)800
Average power consumption (w/m2)270
Led Life (Hours)100,000
Operating Temperature(ºC)-10~+50
Storage Temperature(ºC)-20~+60
Operating Humidity(RH)20%-85%
Storage Humidity(RH)20%-80%
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel pitchP3.076
Pixel Configuration1R1G1B
LampSMD2121
Pixel Density (dots/m2)105,625
LED module size(mm)320×160
Pixel / Module104×52
Diver mode1/26
refresh rate (Hz)≥1920
Frame frequency (Hz)50&60
Grayscale (bit)12-16 adjustable
Signal interfaceHUB75
Bottom Case MaterialSilicone
Weight (kg/pcs)0.252
Servicefront&back
Brightness≥750
Color Temperature3000~10000
Viewing Angle140O/160O
Contrast5000:1
LED module voltageDC5v
Module Max electric current (A)4.5
Module Max power consumption (w)22.5
Supply Voltage AC (V)110~220
Max power consumption (w/m2)600
Average power consumption (w/m2)200
Led Life (Hours)100,000
Operating Temperature(ºC)-10~+50
Storage Temperature(ºC)-20~+60
Operating Humidity(RH)20%-85%
Storage Humidity(RH)20%-80%
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel pitchP1.25
Pixel Configuration1R1G1B
LampSMD1010
Pixel Density (dots/m2)640,000
LED module size(mm)240×120
Pixel / Module192×96
Diver mode1/48
refresh rate (Hz)3840
Frame frequency (Hz)50&60
Grayscale (bit)12-16 adjustable
Signal interfaceHUB75
Bottom Case MaterialSilicone
Weight (kg/pcs)0.215
Servicefront&back
Brightness≥600
Color Temperature3000~10000
Viewing Angle140O/160O
Contrast5000:1
LED module voltageDC5v
Module Max electric current (A)3.8
Module Max power consumption (w)19
Supply Voltage AC (V)110~220
Max power consumption (w/m2)1000
Average power consumption (w/m2)340
Led Life (Hours)100,000
Operating Temperature(ºC)-10~+50
Storage Temperature(ºC)-20~+60
Operating Humidity(RH)20%-85%
Storage Humidity(RH)20%-80%
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel pitchP1.579
Pixel Configuration1R1G1B
LampSMD1212
Pixel Density (dots/m2)401,111
LED module size(mm)240×120
Pixel / Module152×76
Diver mode1/38
refresh rate (Hz)3840
Frame frequency (Hz)50&60
Grayscale (bit)12-16 adjustable
Signal interfaceHUB75
Bottom Case MaterialSilicone
Weight (kg/pcs)0.203
Servicefront&back
Brightness≥650
Color Temperature3000~10000
Viewing Angle140O/160O
Contrast5000:1
LED module voltageDC5v
Module Max electric current (A)3.5
Module Max power consumption (w)17.5
Supply Voltage AC (V)110~220
Max power consumption (w/m2)1000
Average power consumption (w/m2)340
Led Life (Hours)100,000
Operating Temperature(ºC)-10~+50
Storage Temperature(ºC)-20~+60
Operating Humidity(RH)20%-85%
Storage Humidity(RH)20%-80%
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel pitchP1.667
Pixel Configuration1R1G1B
LampSMD1212
Pixel Density (dots/m2)360,000
LED module size(mm)240×120
Pixel / Module144×72
Diver mode1/36
refresh rate (Hz)3840
Frame frequency (Hz)50&60
Grayscale (bit)12-16 adjustable
Signal interfaceHUB75
Bottom Case MaterialSilicone
Weight (kg/pcs)0.195
Servicefront&back
Brightness≥700
Color Temperature3000~10000
Viewing Angle140O/160O
Contrast5000:1
LED module voltageDC5v
Module Max electric current (A)3.2
Module Max power consumption (w)16
Supply Voltage AC (V)110~220
Max power consumption (w/m2)800
Average power consumption (w/m2)270
Led Life (Hours)100,000
Operating Temperature(ºC)-10~+50
Storage Temperature(ºC)-20~+60
Operating Humidity(RH)20%-85%
Storage Humidity(RH)20%-80%
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel pitchP1.875
Pixel pitchP1.875
Pixel Configuration1R1G1B
LampSMD1515
Pixel Density (dots/m2)284,444
LED module size(mm)240×120
Pixel / Module128×64
Diver mode1/32
refresh rate (Hz)≥2880
Frame frequency (Hz)50&60
Grayscale (bit)12-16 adjustable
Signal interfaceHUB75
Bottom Case MaterialSilicone
Weight (kg/pcs)0.216
Servicefront&back
Brightness≥750
Color Temperature3000~10000
Viewing Angle140O/160O
Contrast5000:1
LED module voltageDC5v
Module Max electric current (A)3
Module Max power consumption (w)15
Supply Voltage AC (V)110~220
Max power consumption (w/m2)800
Average power consumption (w/m2)270
Led Life (Hours)100,000
Operating Temperature(ºC)-10~+50
Storage Temperature(ºC)-20~+60
Operating Humidity(RH)20%-85%
Storage Humidity(RH)20%-80%
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel pitchP2
Pixel Configuration1R1G1B
LampSMD1515
Pixel Density (dots/m2)250,000
LED module size(mm)240×120
Pixel / Module120×60
Diver mode1/30
refresh rate (Hz)≥2880
Frame frequency (Hz)50&60
Grayscale (bit)12-16 adjustable
Signal interfaceHUB75
Bottom Case MaterialSilicone
Weight (kg/pcs)0.205
Servicefront&back
Brightness≥750
Color Temperature3000~10000
Viewing Angle140O/160O
Contrast5000:1
LED module voltageDC5v
Module Max electric current (A)3
Module Max power consumption (w)15
Supply Voltage AC (V)110~220
Max power consumption (w/m2)800
Average power consumption (w/m2)270
Led Life (Hours)100,000
Operating Temperature(ºC)-10~+50
Storage Temperature(ºC)-20~+60
Operating Humidity(RH)20%-85%
Storage Humidity(RH)20%-80%
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel pitchP2.5
Pixel Configuration1R1G1B
LampSMD1515
Pixel Density (dots/m2)160,000
LED module size(mm)240×120
Pixel / Module96×48
Diver mode1/24
refresh rate (Hz)≥1920
Frame frequency (Hz)50&60
Grayscale (bit)12-16 adjustable
Signal interfaceHUB75
Bottom Case MaterialSilicone
Weight (kg/pcs)0.175
Servicefront&back
Brightness≥750
Color Temperature3000~10000
Viewing Angle140O/160O
Contrast5000:1
LED module voltageDC5v
Module Max electric current (A)3
Module Max power consumption (w)15
Supply Voltage AC (V)110~220
Max power consumption (w/m2)800
Average power consumption (w/m2)270
Led Life (Hours)100,000
Operating Temperature(ºC)-10~+50
Storage Temperature(ºC)-20~+60
Operating Humidity(RH)20%-85%
Storage Humidity(RH)20%-80%
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel pitchP3
Pixel Configuration1R1G1B
LampSMD2121
Pixel Density (dots/m2)111,111
LED module size(mm)240×120
Pixel / Module80×40
Diver mode1/20
refresh rate (Hz)≥1920
Frame frequency (Hz)50&60
Grayscale (bit)12-16 adjustable
Signal interfaceHUB75
Bottom Case MaterialSilicone
Weight (kg/pcs)0.175
Servicefront&back
Brightness≥900
Color Temperature3000~10000
Viewing Angle140O/160O
Contrast5000:1
LED module voltageDC5v
Module Max electric current (A)3
Module Max power consumption (w)15
Supply Voltage AC (V)110~220
Max power consumption (w/m2)800
Average power consumption (w/m2)270
Led Life (Hours)100,000
Operating Temperature(ºC)-10~+50
Storage Temperature(ºC)-20~+60
Operating Humidity(RH)20%-85%
Storage Humidity(RH)20%-80%
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel pitchP4
Pixel pitchP4
Pixel Configuration1R1G1B
LampSMD2121
Pixel Density (dots/m2)62,500
LED module size(mm)240×120
Pixel / Module60×30
Diver mode1/15
refresh rate (Hz)≥1920
Frame frequency (Hz)50&60
Grayscale (bit)12-16 adjustable
Signal interfaceHUB75
Bottom Case MaterialSilicone
Weight (kg/pcs)0.17
Servicefront&back
Brightness≥850
Color Temperature3000~10000
Viewing Angle140O/160O
Contrast5000:1
LED module voltageDC5v
Module Max electric current (A)3
Module Max power consumption (w)15
Supply Voltage AC (V)110~220
Max power consumption (w/m2)800
Average power consumption (w/m2)270
Led Life (Hours)100,000
Operating Temperature(ºC)-10~+50
Storage Temperature(ºC)-20~+60
Operating Humidity(RH)20%-85%
Storage Humidity(RH)20%-80%
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel pitchP2
Pixel Configuration1R1G1B
LampSMD1515
Pixel Density (dots/m2)250,000
LED module size(mm)256×128
Pixel / Module128×64
Diver mode1/32
refresh rate (Hz)≥2880
Frame frequency (Hz)50&60
Grayscale (bit)12-16 adjustable
Signal interfaceHUB75
Bottom Case MaterialSilicone
Weight (kg/pcs)0.235
Servicefront&back
Brightness≥750
Color Temperature3000~10000
Viewing Angle140O/160O
Contrast5000:1
LED module voltageDC5v
Module Max electric current (A)3
Module Max power consumption (w)15
Supply Voltage AC (V)110~220
Max power consumption (w/m2)600
Average power consumption (w/m2)200
Led Life (Hours)100,000
Operating Temperature(ºC)-10~+50
Storage Temperature(ºC)-20~+60
Operating Humidity(RH)20%-85%
Storage Humidity(RH)20%-80%
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel pitchP4
Pixel Configuration1R1G1B
LampSMD2121
Pixel Density (dots/m2)62,500
LED module size(mm)256×128
Pixel / Module64×32
Diver mode1/16
refresh rate (Hz)≥1920
Frame frequency (Hz)50&60
Grayscale (bit)12-16 adjustable
Signal interfaceHUB75
Bottom Case MaterialSilicone
Weight (kg/pcs)0.19
Servicefront&back
Brightness≥850
Color Temperature3000~10000
Viewing Angle140O/160O
Contrast5000:1
LED module voltageDC5v
Module Max electric current (A)2.8
Module Max power consumption (w)14
Supply Voltage AC (V)110~220
Max power consumption (w/m2)600
Average power consumption (w/m2)200
Led Life (Hours)100,000
Operating Temperature(ºC)-10~+50
Storage Temperature(ºC)-20~+60
Operating Humidity(RH)20%-85%
Storage Humidity(RH)20%-80%
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel pitchP4
Pixel Configuration1R1G1B
LampSMD1921
Pixel Density (dots/m2)62,500
LED module size(mm)256×128
Pixel / Module64×32
Diver mode1/16
refresh rate (Hz)≥1920
Frame frequency (Hz)50&60
Grayscale (bit)12-16 adjustable
Signal interfaceHUB75
Bottom Case MaterialSilicone
Weight (kg/pcs)0.19
Servicefront&back
Brightness≥4500 nits
Color Temperature3000~10000
Viewing Angle140O/160O
Contrast5000:1
LED module voltageDC5v
Module Max electric current (A)2.8
Module Max power consumption (w)14
Supply Voltage AC (V)110~220
Max power consumption (w/m2)600
Average power consumption (w/m2)200
Led Life (Hours)100,000
Operating Temperature(ºC)-10~+50
Storage Temperature(ºC)-20~+60
Operating Humidity(RH)20%-85%
Storage Humidity(RH)20%-80%
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.

Features

flexible led module back 04

Very flexible

The PCB board is made of flexible soft board, and the mask and bottom shell are made of high-quality silicone material, good flexibility, high temperature, and low-temperature resistance, eliminating static electricity, and strong protection performance. So it is installed on any raised and recessed mounting surface with good flatness and consistency.

flexible led module side 2

Ultra slim and lightweight

The thickness of the module is only 8.6mm, the ultra-thin design takes up little space, and the installed flexible led display is also ultra-thin, beautiful, and atmospheric.

different size of the flexible led module

Various models for you choose

Pixel pitchLED module sizePixel / ModuleDiver mode
P1.86320×160172×861/43
P2320×160160×801/40
P2.5320×160128×641/32
P3.076320×160104×521/26
Pixel pitchLED module sizePixel / ModuleDiver mode
P1.25240×120192×961/48
P1.579240×120152×761/38
P1.667240×120144×721/36
P1.875240×120128×641/32
P2240×120120×601/30
P2.5240×12096×481/24
P3240×12080×401/20
P4240×12060×301/15
Pixel pitchLED module sizePixel / ModuleDiver mode
P2256×128128×641/32
P4256×12864×321/16
flexible led display module with magnets

Magnet assemble

Magnetic adsorption installation is convenient and fast. It is very convenient to install and maintain. And the magnet can adjust the flatness to ensure the uniformity of the whole led screen.

Pictures

Flexible LED display module application

The flexible LED display module can be used in a wide range of occasions, such as art museums, science and technology museums, museums, planning halls, urban planning halls, creative centers, etc.

Flexible led module parameter download

Video for Flexible LED display

Contact us


WHY CHOOSE US AS YOUR LED DISPLAY SUPPLIER IN CHINA


Related product

Indoor LED display modules

Outdoor LED modules

Got any Questions?

Connect With Szledworld

Szledworld is the only company, that can provide LED Wall displays in all forms and custom fabrication services in China. Partnering with Szledworld provides excellent opportunities to grow your customer base and enhance your revenue by offering INTEGRATED solutions in the LED Wall Display.


I’m Interested
